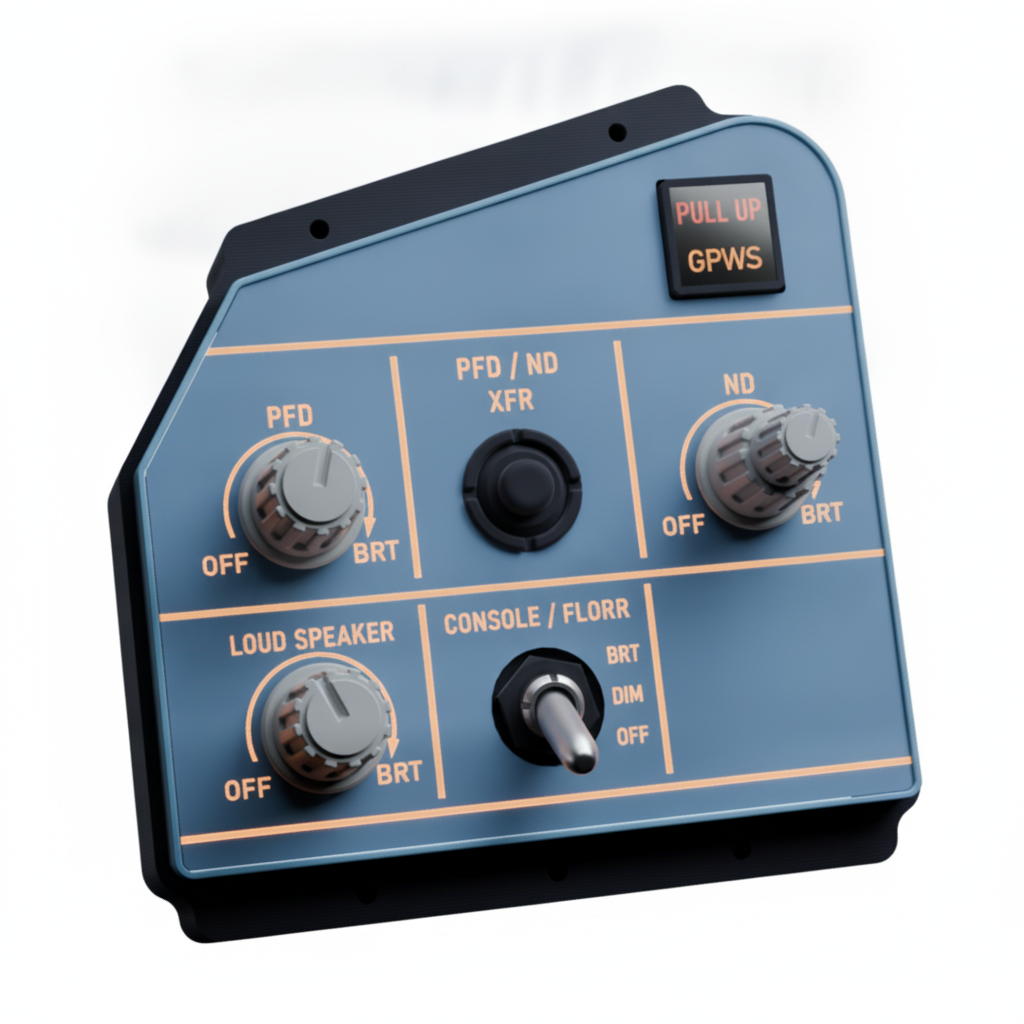

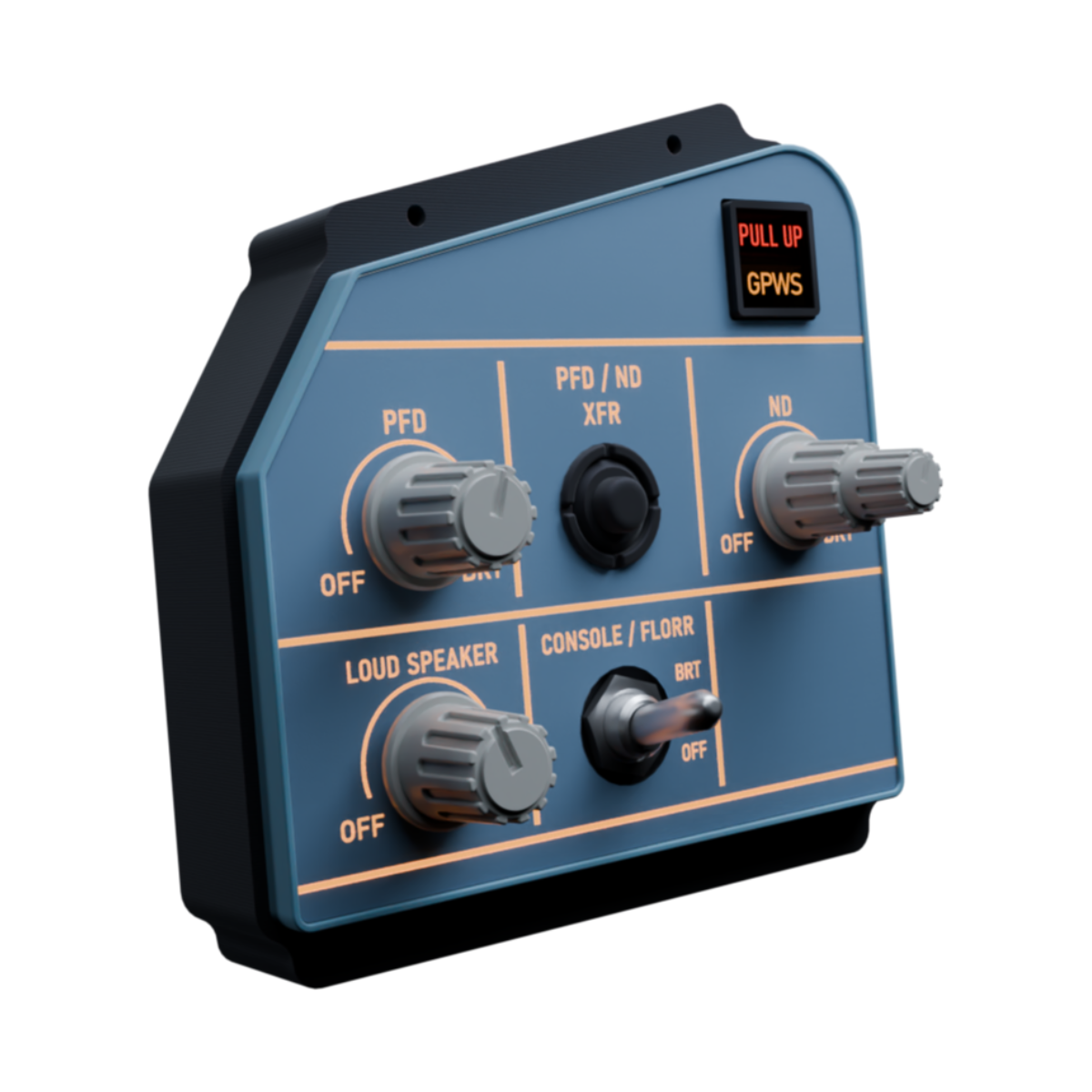

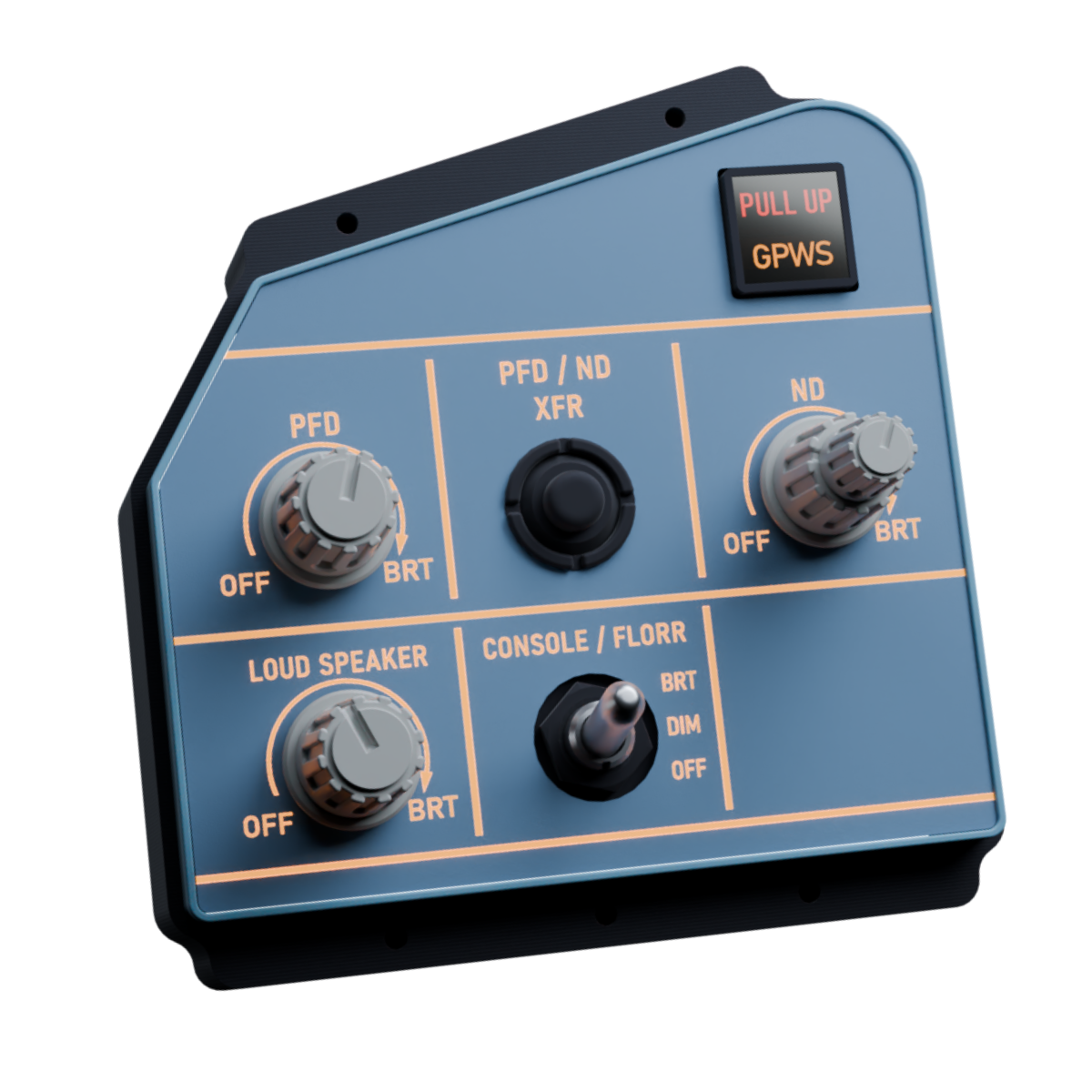

SIM GAUGES AIRBUS A320 INSTRUMENT LIGHTING CONTROL PANEL (ILCP) is a 1:1 scale module created for flight simulation enthusiasts and virtual pilots who demand the highest level of realism. Modelled after the Airbus A320 instrument lighting panel and built to the real unit’s dimensions, it replicates the PFD and ND brightness knobs, the PFD/ND XFR pushbutton, LOUD SPEAKER volume, the CONSOLE/FLOOR lighting switch and the PULL UP / GPWS warning light.
Available in four versions: A320 and A320neo, each for the Captain (left) or First Officer (right) side.
Renders of the remaining variants will be available soon.
Plug-and-play and easy to connect with MSFS, MSFS 2024, and X-Plane.
Compatible with Fenix A320, FlyByWire A320 and IniBuilds A340 in both MSFS 2020 and 2024, and with A319/A320/A321/A330 Toliss for X-Plane and many more! Full list : click here
Compatible with MobiFlight.
- True-to-scale Korry button with dual-colour LED indicators
- Durable metal toggle switch
- Dual concentric ND knob as in the real aircraft
- Fully backlit (adjustable brightness)
- Housing Material: Plastic back with plexiglass front panel
- Plug and play.
- Fully assembled.
- No configuration is required.
- Simple connection to your PC via one USB (included in the package).
- DO NOT INCLUDE STAND
- 🇪🇺 MADE IN POLAND
Weight 0,5 kg

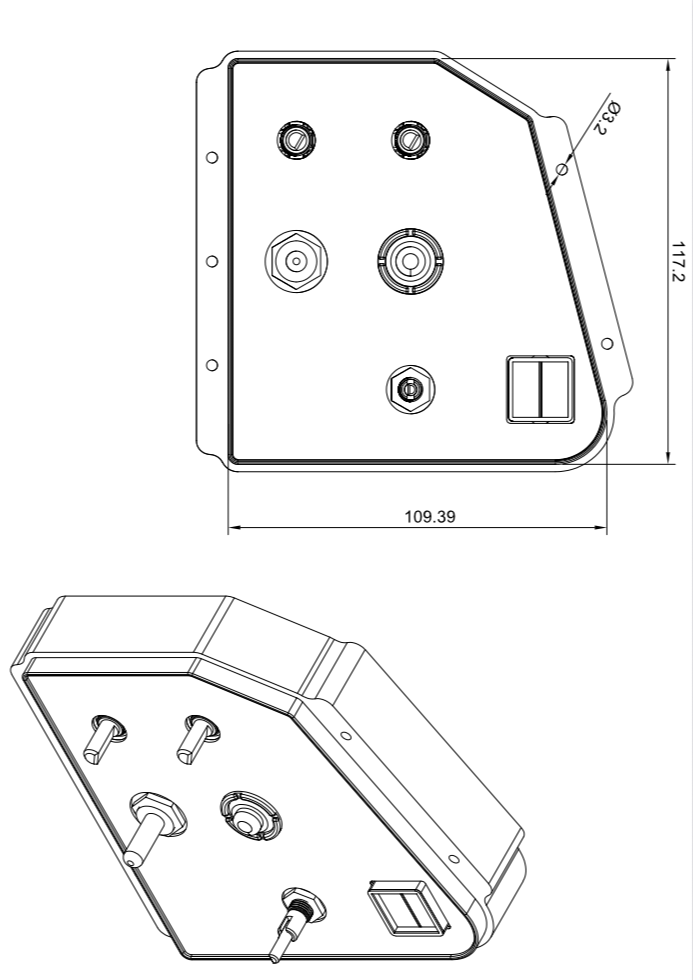

Dimensions
- ILCP- 117 mm x 109 mm
- ILCP NEO - coming soon
USB cable length 1,5m
Power: +5V 0,5A
- Compatible with MSFS, MSFS 2024 or X-PLANE 11/12, by using our dedicated applications. More info about our software can be found HERE.
- FULL LIST OF COMPATIBLE AIRCRAFT
- Compatible with MobiFlight. Config and profile available to download HERE.
- Require a PC station with Windows 10 or 11 with one USB port.
- It will not work with Xbox.
- More info on FAQ page.
SIM GAUGES AIRBUS A320 INSTRUMENT LIGHTING CONTROL PANEL (ILCP) is a 1:1 scale module created for flight simulation enthusiasts and virtual pilots who demand the highest level of realism. Modelled after the Airbus A320 instrument lighting panel and built to the real unit’s dimensions, it replicates the PFD and ND brightness knobs, the PFD/ND XFR pushbutton, LOUD SPEAKER volume, the CONSOLE/FLOOR lighting switch and the PULL UP / GPWS warning light.
Available in four versions: A320 and A320neo, each for the Captain (left) or First Officer (right) side.
Renders of the remaining variants will be available soon.
Plug-and-play and easy to connect with MSFS, MSFS 2024, and X-Plane.
Compatible with Fenix A320, FlyByWire A320 and IniBuilds A340 in both MSFS 2020 and 2024, and with A319/A320/A321/A330 Toliss for X-Plane and many more! Full list : click here
Compatible with MobiFlight.
- True-to-scale Korry button with dual-colour LED indicators
- Durable metal toggle switch
- Dual concentric ND knob as in the real aircraft
- Fully backlit (adjustable brightness)
- Housing Material: Plastic back with plexiglass front panel
- Plug and play.
- Fully assembled.
- No configuration is required.
- Simple connection to your PC via one USB (included in the package).
- DO NOT INCLUDE STAND
- 🇪🇺 MADE IN POLAND
Weight 0,5 kg
Dimensions
- ILCP- 117 mm x 109 mm
- ILCP NEO - coming soon
USB cable length 1,5m
Power: +5V 0,5A
- Compatible with MSFS, MSFS 2024 or X-PLANE 11/12, by using our dedicated applications. More info about our software can be found HERE.
- FULL LIST OF COMPATIBLE AIRCRAFT
- Compatible with MobiFlight. Config and profile available to download HERE.
- Require a PC station with Windows 10 or 11 with one USB port.
- It will not work with Xbox.
- More info on FAQ page.
INCLUDED IN THE BOX
